Product introduction

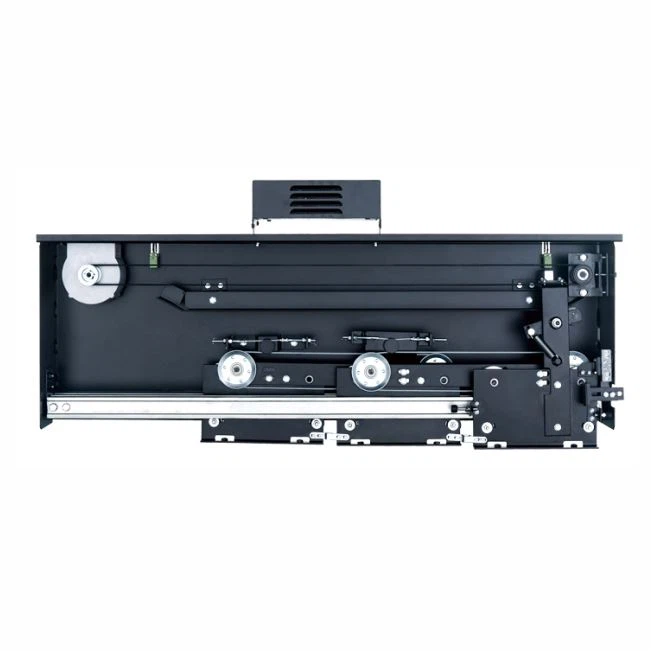

Elevator Side Opening Door Operator THP131-102
1. Using PM motor, large rotary torque, high efficiency, energy saving
2. Using motor synchronous with direct drag mode to transfer torque, more compact design
3. Highly smooth operation, achieve the completely closed loop control of the torque, speed and position
4. Using asyn. door clutch,, car frame, top, front wall installation
5. Total door panel weight≤240kg; Voltage:200- 250 V, 50 /60 Hz
Product parameter (specification)
| JJ | 900 | 1000 | 1100 | 1200 | 1300 | 1400 | 1500 | 1600 | 1700 | 1800 |
| A1 | 4/3JJ+134 or AS+80 bigger one | |||||||||
| B1 | 286 | 319 | 352 | 386 | 419 | 419 | 486 | 519 | 552 | 586 |
| C1 | 332 | 365 | 399 | 432 | 465 | 465 | 532 | 565 | 599 | 632 |
