Product introduction

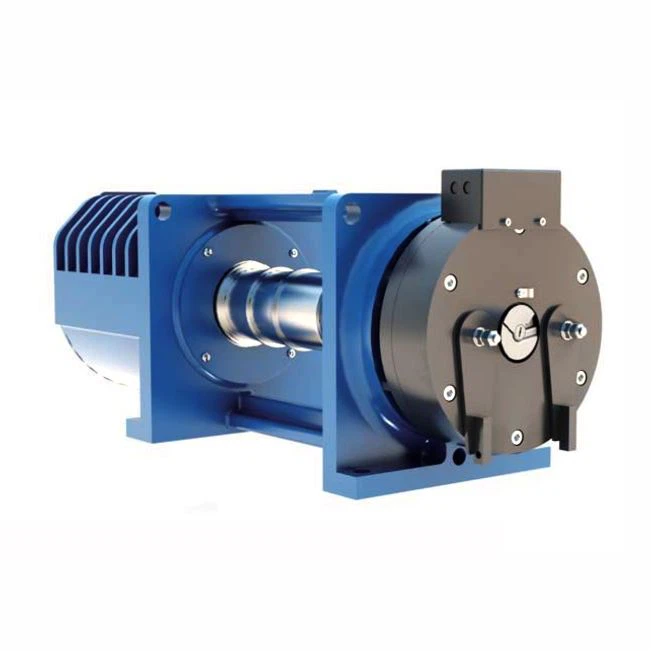

MONADRIVE elevator traction Machine-Belt type MGD100A, Permanent magnet synchronous gearless traction Machine-Belt type.
The machine is used for machine roomless.
Product parameter (specification)
| Voltage | 380V | Roping | 2:1 |
| EIv.L oad | (630~1050)kg | Elv.Speed | (0.5~1.75)m/s |
| Sheave Diam | 100mm | Duty | S5-40% |
| IP Code | IP41 | Max. Static Load | 3000kg |
| Ins.Class | F | Weight | 210kg |
| Brake | DC110V 2.4A | ||
